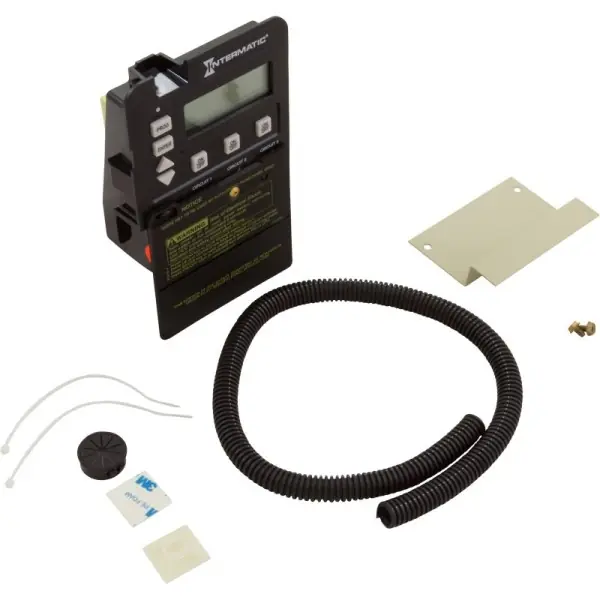

Digital Timer, Intermatic P1353ME, 2 Speed, 115v, 3PST : P1353ME Limited Offer

Product info

Digital Timer, Intermatic P1353ME, 2 Speed, 115v, 3PSTDigital Timer, Intermatic P1353ME, 2 Speed, 115v, 3PSTCalifornia Residents WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.govP1353METhree Circuit Clock MechanismDesigned as an upgrade to your T100 Series time switch, the P1353ME mechanism can be installed into almost any Intermatic enclosure and has the ability to program up to three circuits. Choose between seven pre-programmed modes of operation, which include single speed pump or 2-speed pump/cleaner pump combinations. In addition, programmed modes that include auxiliaries can control pumps up to 3 HP as well as underwater, landscape and/or fountain lighting. Countdown and Override features allow cycle interruptuions when pool/spa service is required. All timing and protection associated with filter pump/cleaner pump combinations and two-speed pumps has already been integrated into the software. Title 20 Compliant. Specifications: Three individual circuitsThree ON/OFF events per day per circuitSeven pre-programmed modes for common pool & spa applicationsInput voltage 120, 208, 240 VACMemory backupFreeze protectionHeater protection (fireman switch)LCD readoutShipping Weight: 3 lbs (1.4 kg)Agency Approval: CSA/C-USCONTACT RATINGS – EACH CIRCUIT, ALL MODES: 17 Amp Resistive, 120, 240 VAC, 50/60 Hz(20 FLA, 96 LRA), 120 VAC, 50/60 Hz(17 FLA, 80 LRA), 240 VAC, 50/60 Hz5 Amp Tungsten, 120-240 VAC, 50/60 Hz5 Amp Ballast, 120-240 VAC, 50/60 HzManufacturer: IntermaticModel: P1353MEVoltage: 115vSwitch Type: 3 Pole Single Throw (3pst)Time Clock Type: ProgrammableReplaces3685-150,56727,INT-30-1309,
