Nidec Motor Corporation U.S. MOTORS 1865 Reduced Price

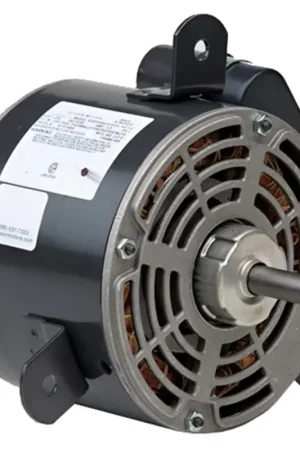

U.S. MOTORS Fan and Blower Motor Direct Drive
Continuous Duty Permanent Split Capacitor 1/2 hp 115 V 7.4 A 60 Hz 1 Phase 48 Frame 1075 Rpm 3 Speed 59.51 ftoz Reversible Service Factor: 1 Capacitor: 10 u
F at 370 V 5.6 Inch Body Diameter 1/2 Inch Dia x 4 Inch L Shaft Self
Aligning Ball Bearing Hub Ring/Stud Mount Mounting Position: All Angle 64.5% Efficiency 40 deg C Class B Insulation Open Air Over
� Automatic reset thermal overload protector
� Four studs shaft end on 51/8 Inch bolt circles
� Sleeve bearing for all angle mounting
� Stud extensions on popular models
� Designed for use with 370V capacitors
� Connection and capacitor information furnished in the nameplate data
Standard/Approvals: CSA Certified
Application: Commercial and Residential
